Every gap under a steel column, every void around an anchor bolt, and every joint between precast panels needs one thing: a filler that won’t shrink, crack, or lose contact over time. That’s exactly the job non-shrink grout is engineered for. If you’re specifying materials for structural connections in 2026, here’s everything you need to know about what non-shrink grout is, why it matters, and where it’s used.
What Is Non-Shrink Grout?

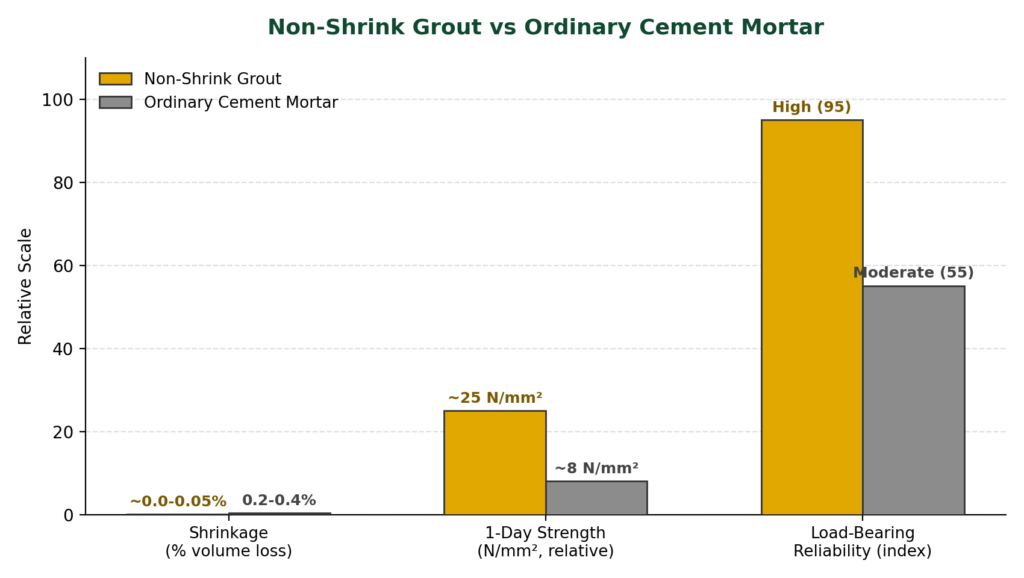

Non-shrink grout is a cementitious, pre-mixed construction material made from high-strength cement, graded aggregates, and expansive additives. Unlike ordinary cement mortar — which naturally loses a small amount of volume as it cures and can crack or pull away from surfaces — non-shrink grout is formulated to maintain or slightly expand its volume during the plastic (wet) stage. This ensures it stays in full, permanent contact with whatever it’s supporting.
How It Works
The expansive agents in non-shrink grout react chemically during curing to counteract the natural shrinkage of cement. The result is a dense, void-free fill that bonds tightly to steel, concrete, and masonry surfaces — critical wherever a structure needs to transfer load evenly without gaps.
Key Benefits of Non-Shrink Grout
- Zero to near-zero shrinkage — maintains full contact with base plates and surfaces
- High early and ultimate compressive strength for rapid load transfer
- Excellent flowability — can be poured, pumped, trowelled, or dry-packed
- Chloride-free formulation, so it won’t corrode embedded steel or reinforcement
- Resistant to vibration, dynamic loads, and long-term settlement
- Faster project timelines due to high early strength development
Where Is Non-Shrink Grout Used?
Non-shrink grout shows up in almost every structural connection point on a construction site. Here’s a breakdown of the most common applications:
|
Application Area |
Why Non-Shrink Grout Is Used |
|
Column & Machine Base Plates |
Fills the gap under steel base plates completely, ensuring full contact and even load transfer to the foundation. |
|
Anchor Bolts & Fixings |
Secures bolts and dowels rigidly in place without voids that could loosen under vibration or load. |
|
Precast Concrete Joints |
Fills joints between precast panels, beams, and columns, restoring structural continuity. |
|
Bridge Bearings & Expansion Joints |
Provides high early strength and durability under constant vibration and traffic load. |
|
Structural Repairs & Underpinning |
Patches damaged concrete and reinforces foundations without shrinkage cracks forming later. |
|
Post-Tensioning Ducts |
Encases tensioned cables/rods completely, protecting them from corrosion and ensuring bond strength. |
Choosing the Right Grout Grade
Non-shrink grouts are typically available in different strength grades suited to different load and application requirements — from general-purpose grouting to heavy-duty structural work involving machinery bases and high-load columns. Choosing the right grade depends on the gap thickness, load type, and exposure conditions at your site.
Evergreen Homes manufactures the Structural Grout range — Ever Power Grout 60, 80, and 80+ — engineered for non-shrink, high-strength performance across column bases, machine foundations, and precast connections. We also supply complementary Waterproofing Solutions and AAC Block Adhesive to cover the full structural and masonry workflow.
Application Best Practices
- Saturate the concrete substrate with clean water for several hours before pouring grout
- Remove all oil, grease, dust, and loose material from the surface before application
- Mix only the water quantity specified — excess water reduces final strength
- Avoid application in direct sunlight or extreme heat; keep materials and water cool
- Use formwork to contain flowable grout and prevent it from spreading beyond the void
Quick Takeaways
- Non-shrink grout maintains full contact under load by resisting the natural shrinkage of cement.
- It’s used wherever structural elements need a rigid, void-free connection — column bases, anchor bolts, precast joints, and repairs.
- Chloride-free formulation protects embedded steel from corrosion over the structure’s lifetime.
- Proper surface prep and water dosing are critical to achieving full grout performance.
Conclusion
Non-shrink grout provides strong, stable, and durable support for construction applications. With the Ever Power Grout range, Evergreen Homes offers reliable solutions for column bases, machine foundations, and precast connections.
